| Clasificación | Bombas de vacío |
|---|---|

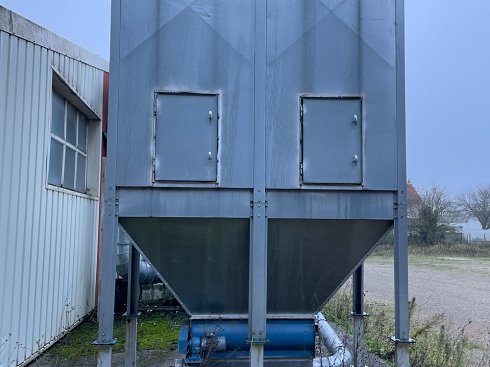

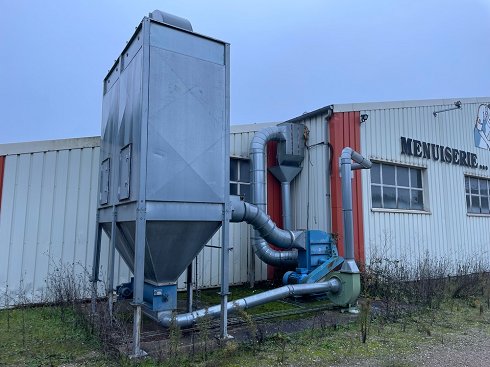

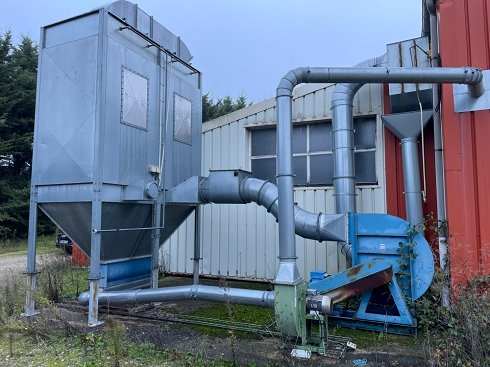

| Nombre | Vacuum filtration AFIII - C3042 |
| Referencia cliente | C3042 |
| Marca | SAMSOUD |
| Modelo | |
| Año fabricación | |

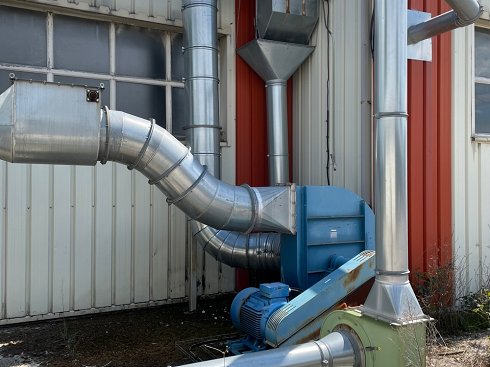

| Detalles | Technical characteristics 72 cotton filter bags, diameter 200 mmElectrical cleaning37kW pressure fan, diameter 450 mmFiltering surface 112 m2, max flow rate 17000 m3/hAnti-explosion vents, fire damper, wedge trapInlet dimensions: diameter 450 mm + diameter 250 mmSluice 1300 mm, diameter 200 mm for the recovery of chips in the hopper (with fan 4 kW) Power and Motors Voltage: 400 VPluging: Three-phased Overall dimensions Lenght: 3000 mmWidth: 1600 mmHeight: 6000 mm |
| Estado | Segunda mano |
| Última modificación de la información | 23/03/2025 7:52:01 |
